Aluminum Tube Coolers
FOR PRESSURES UP TO 175 PSI (1207 kPa)

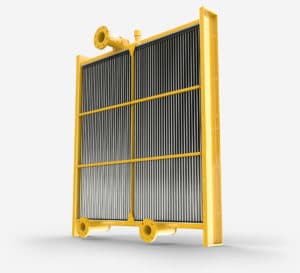

MESABI® Aluminum Tube Coolers offer the precise, high-performing cooling solution for your needs. Regardless of application pressures, cooling performance needs, or space requirements a full-line of MESABI® Aluminum Tube Coolers are ready for the call.
Our MESABI® Aluminum Tube Coolers are designed using tubes with integral circular finning rolled from the tube wall. Inside the tubes are removable turbulators to increase heat transfer.
WITHSTANDS THERMAL AND MECHANICAL STRESSES
Individual tubes are held in headers with flexible rubber seals.
100% REPAIRABLE IN THE FIELD
Individual tubes allow for easy in-field repair. Refer to resources for service videos.
EASY TO
CLEAN
Cores can be easily cleaned externally with high-pressure air or water.
INDUSTRY BEST
SEAL WARRANTY
48-month warranty against seal leakage.
*5 years or 25,000 hours when specified on new OEM equipment.
Mesabi® Aluminum Round Tube Coolers: Reliability and Durability Second to None
Mesabi® Aluminum Round Tube Coolers by L&M Radiator offer precise, high-performance cooling solutions for any application in the oil and gas and mining industries.
Mesabi Aluminum Round Tube Coolers achieve this by combatting thermal and mechanical shock and fatigue with L&M rubber seal ingenuity. For example, Mesabi rubber seals eliminate thermal expansion for oil-lubricated air compressors and the leaks that lead to system failure and expensive downtime. Proven time and again to withstand whatever comes their way, these seals are backed by L&M’s industry-best warranty.
Thermal fatigue is a key challenge for industrial compressors, blast-hole drill rigs, and a variety of oil-gas skid packages that have compressors. When hot oil hits the core, the core expands, but the framework around it does not. When the system cools down, it is just the opposite. The core shrinks, and by that point, the framework has warmed up and still wants to be in expanded mode.
Regardless of application pressures, cooling performance needs, or space requirements, Mesabi Aluminum Round Tube Coolers can be custom designed for pressures up to 175 psi and to withstand the harshest temperatures – more than 275ºF.
Mesabi Aluminum Round Tube Coolers are designed with tubes with integral circular finning rolled from the tube wall and turbulators placed in tubes to increase heat transfer. This also makes for easy removal and effortless cleaning.
L&M’s exclusive design ensures that Mesabi Aluminum Round Tube Coolers can be quickly and simply returned to service if damaged or in need of regular maintenance. Held in headers with flexible, fluorocarbon rubber seals, individual tubes are replaceable in the field and the units can be returned to 100 percent cooling performance capacity. Mesabi cores are easily cleaned externally with high-pressure air or water.
L&M Radiator provides incomparable service to users and OEMs because all service is handled at the manufacturer level. In emergencies, L&M can ship most genuine Mesabi parts within 48 hours. Onsite technical and engineering assistance is available nearly anywhere in the world with a few days’ notice thanks to manufacturing facilities and parts depots in the United States, Europe, Mexico, Chile, and Australia.
MESABI® Aluminum Tube Coolers are covered by the L&M Radiator, Inc. General Warranty along with the following Product Specific Warranty:
L&M Radiator, Inc. warrants MESABI® Standard Aluminum Tube Coolers against seal leakage during normal operation for 48 months from date of invoice on new coolers.
